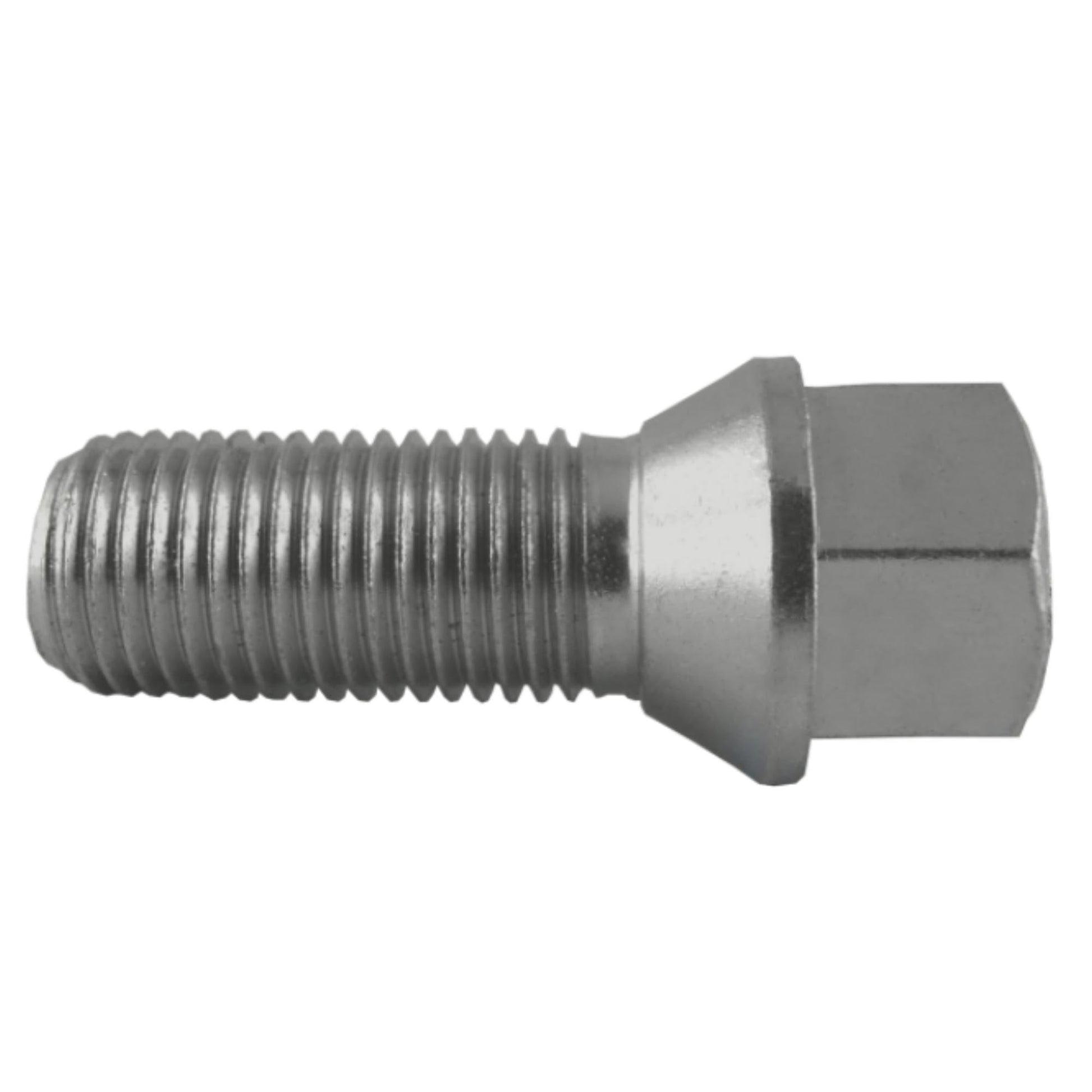

Wheel bolt cone M14x1.5 SW17 galvanized variation

1x wheel bolt for alloy wheels and wheel spacers

Version: Taper screw galvanized M14x1.5

"Shaft length selectable in the rider"

Wrench size: 17

Description:

Our galvanized conical screws for aluminum rims and wheel spacers are manufactured in Europe by ISO certified companies (ISO 9001:2008) and have a hardness of 10.9.

Details:

• Dimensions (thread diameter x pitch): M14 x1.5
• Seat: tapered seat 60°
• Wrench size: SW 17
• Hardness: 10.9
• Material: Steel
• Surface: galvanized
• Color: silver

Sizes available in the tab:

• M14 x 1.5 x 25 mm
• M14 x 1.5 x 28 mm
• M14 x 1.5 x 30 mm
• M14 x 1.5 x 32 mm
• M14 x 1.5 x 33 mm
• M14 x 1.5 x 35 mm
• M14 x 1.5 x 40 mm
• M14 x 1.5 x 45 mm
• M14 x 1.5 x 50 mm
• M14 x 1.5 x 60 mm

A notice:

Use depends on the exact rim design and approval. The tightening torques of the respective vehicle manufacturer must be observed. We recommend having a wheel change carried out in a specialist workshop.
