STEMA Set 3 - 2x holder 1x set of screws 2x clamp holder 2x support 700mm

2x STEMA holder with clamp holder + parking supports 700mm

Including set of screws for 2 holders

Very stable design made of galvanized sheet steel

Description:

With many STEMA trailers, these brackets are required to attach clamp brackets for parking supports.

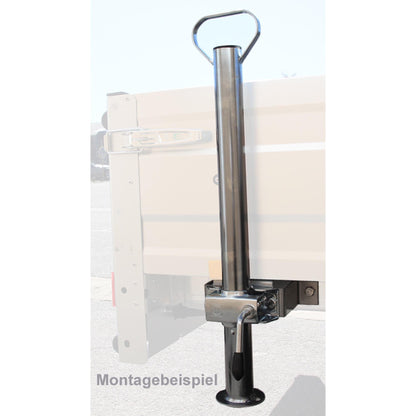

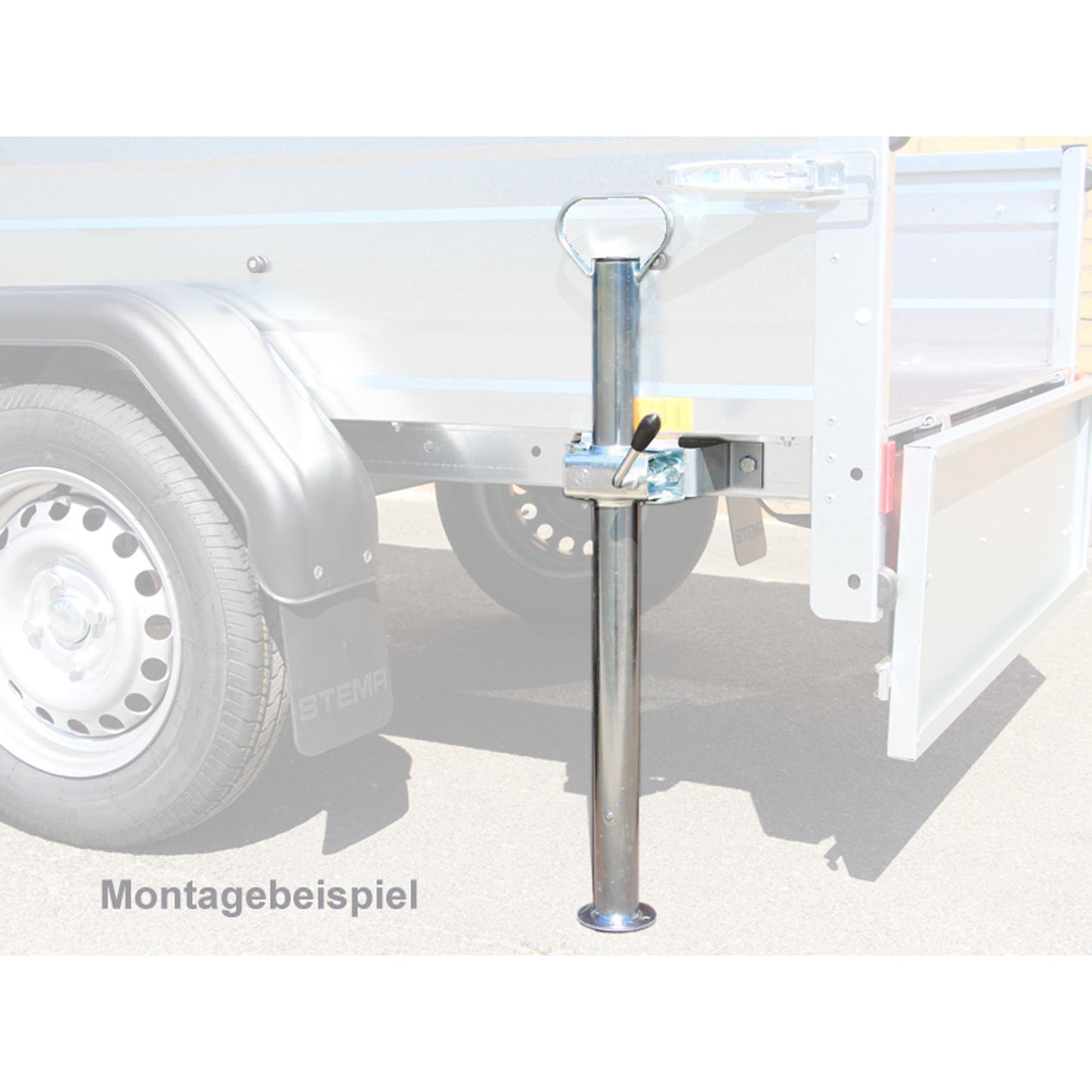

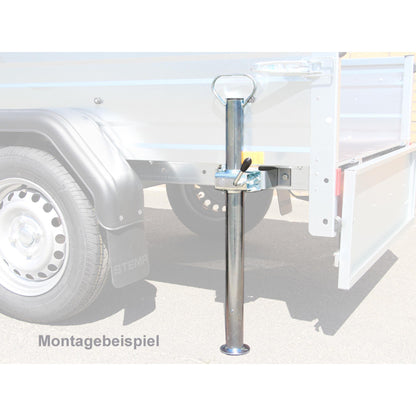

The holder should be screwed to the frame of the trailer below and to the loading area from above.

Bracket details:

• Material: sheet steel
• Finish: Galvanized
• Material thickness: approx. 3mm
• Length: about 225mm
• Width: about 65mm
• Height: about 100mm
• Distance between the holes for frame attachment: approx. 195mm Ø10.5mm

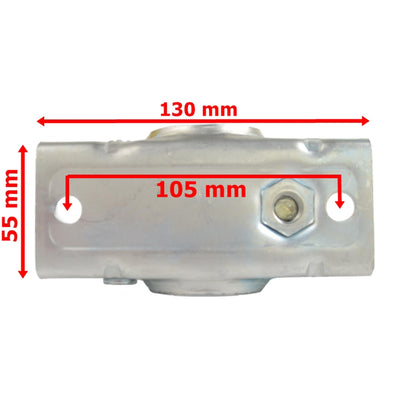

• Distance between the bores for the clamp holder: approx. 105mm Ø10.5mm

Details clamp holder:

• For tube diameter: Ø approx. 48mm
• Material: steel
• Finish: Galvanized

Details support tube:

• Material: steel (galvanized)
• Tube diameter: approx. 48mm
• Total length with handle: approx. 750mm
• Total length without handle: approx. 700mm
• Diameter support foot: approx. 90mm

Details screw set:

• 8x screw M10x30
• 8x self-locking nut M10
• 2x round head screw M8x30
• 2x self-locking nut M8

Hints:

With some STEMA trailers, which are sold by the "Bauhaus" company, additional parts have to be attached so that the brackets for clamp holders can be attached to the frame.
Not suitable for the type B700/750 & high loader HL750.

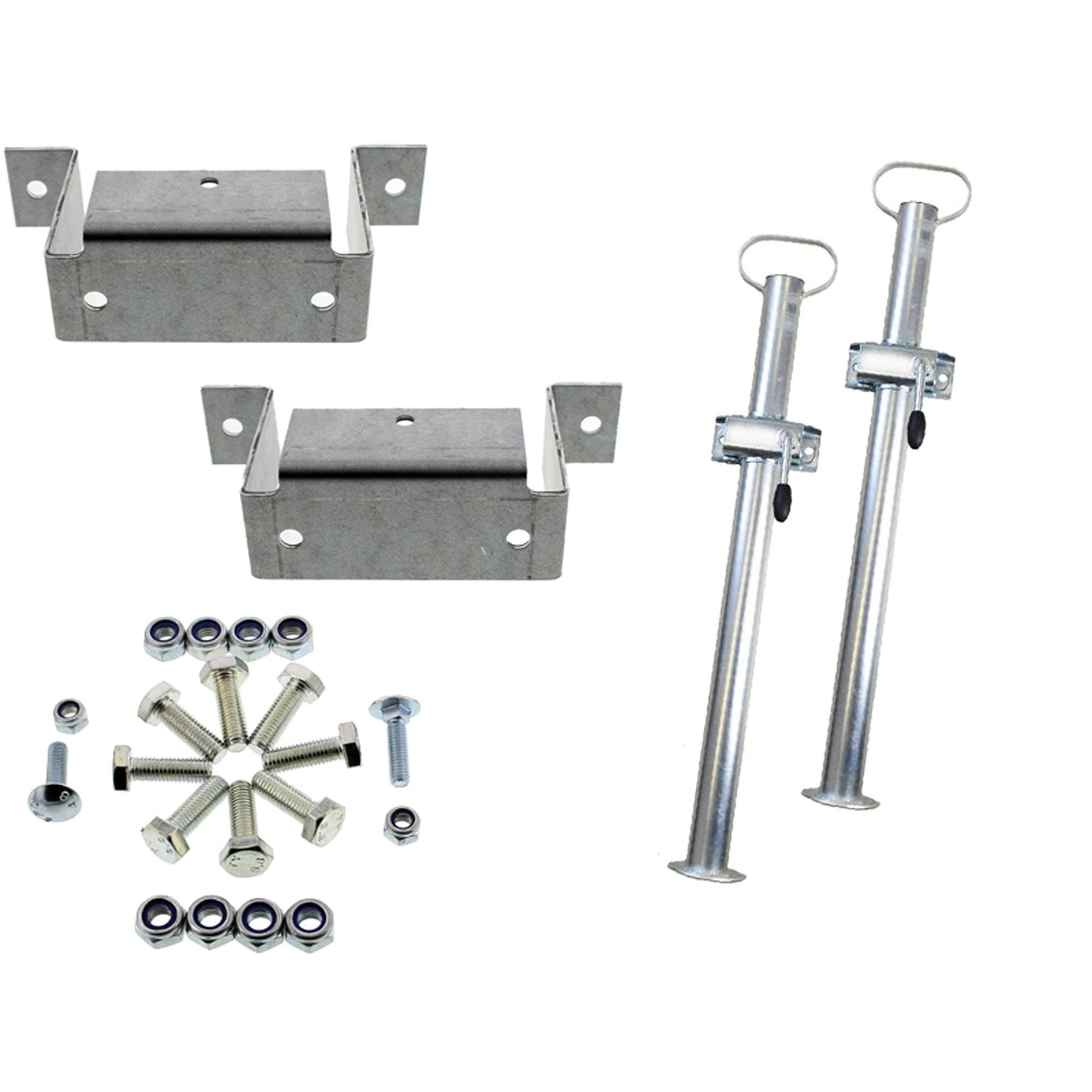

Offer content:

• 2x STEMA holders for clamp holders
• 2x clamp holder for Ø48mm tube
• 2x parking support Ø48mm 700mm
• 1x set of screws like this

If you have any questions, please contact us.
