SKU:T430676

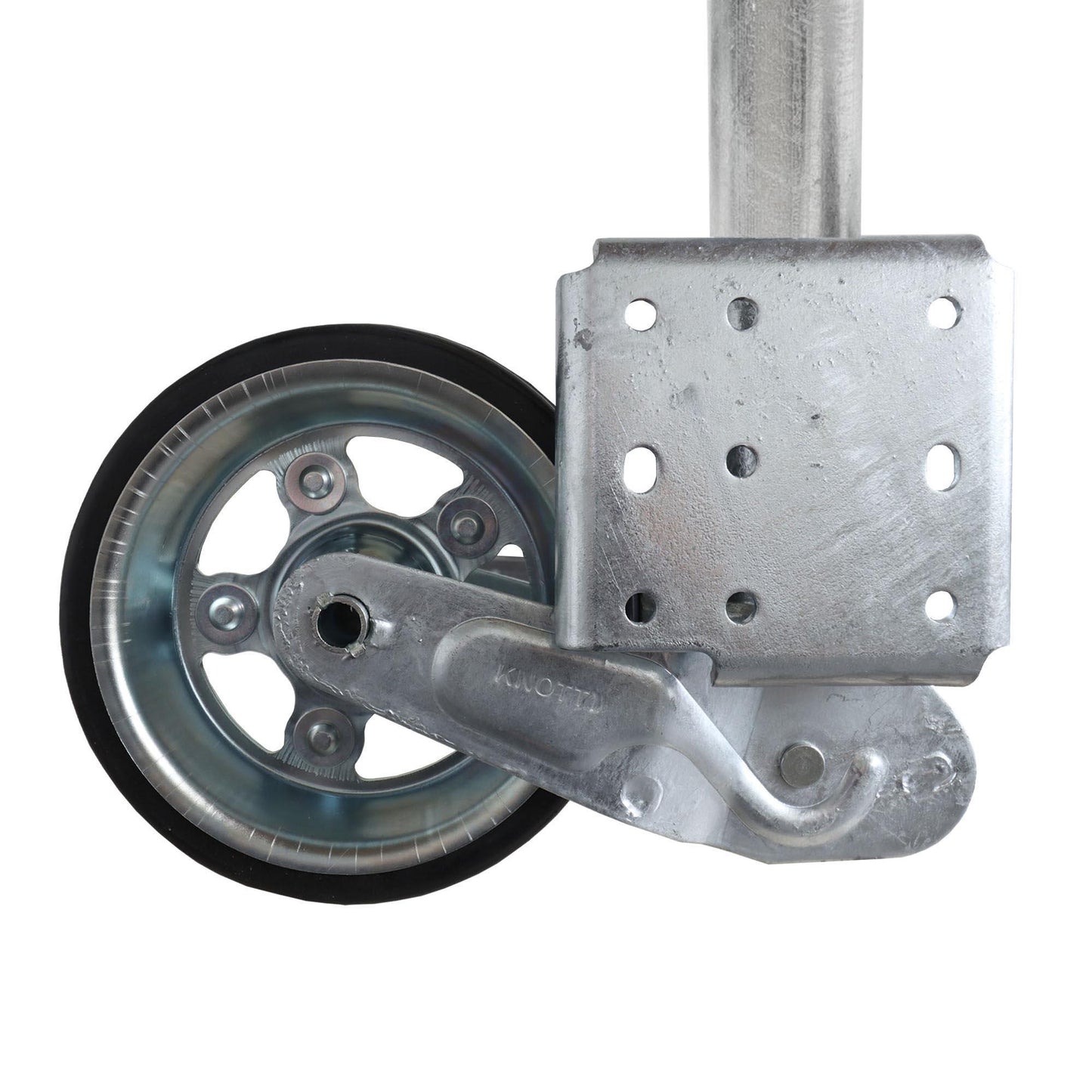

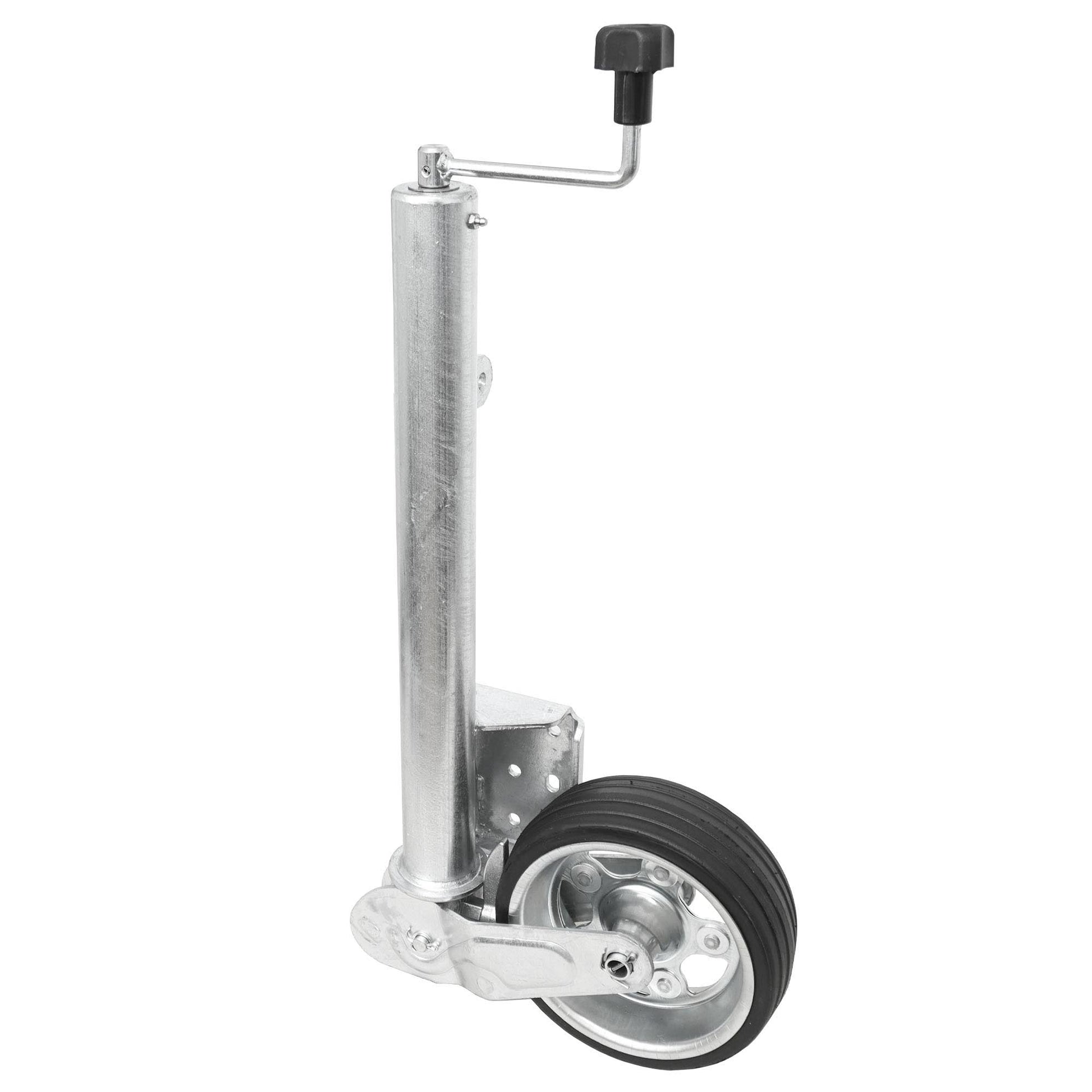

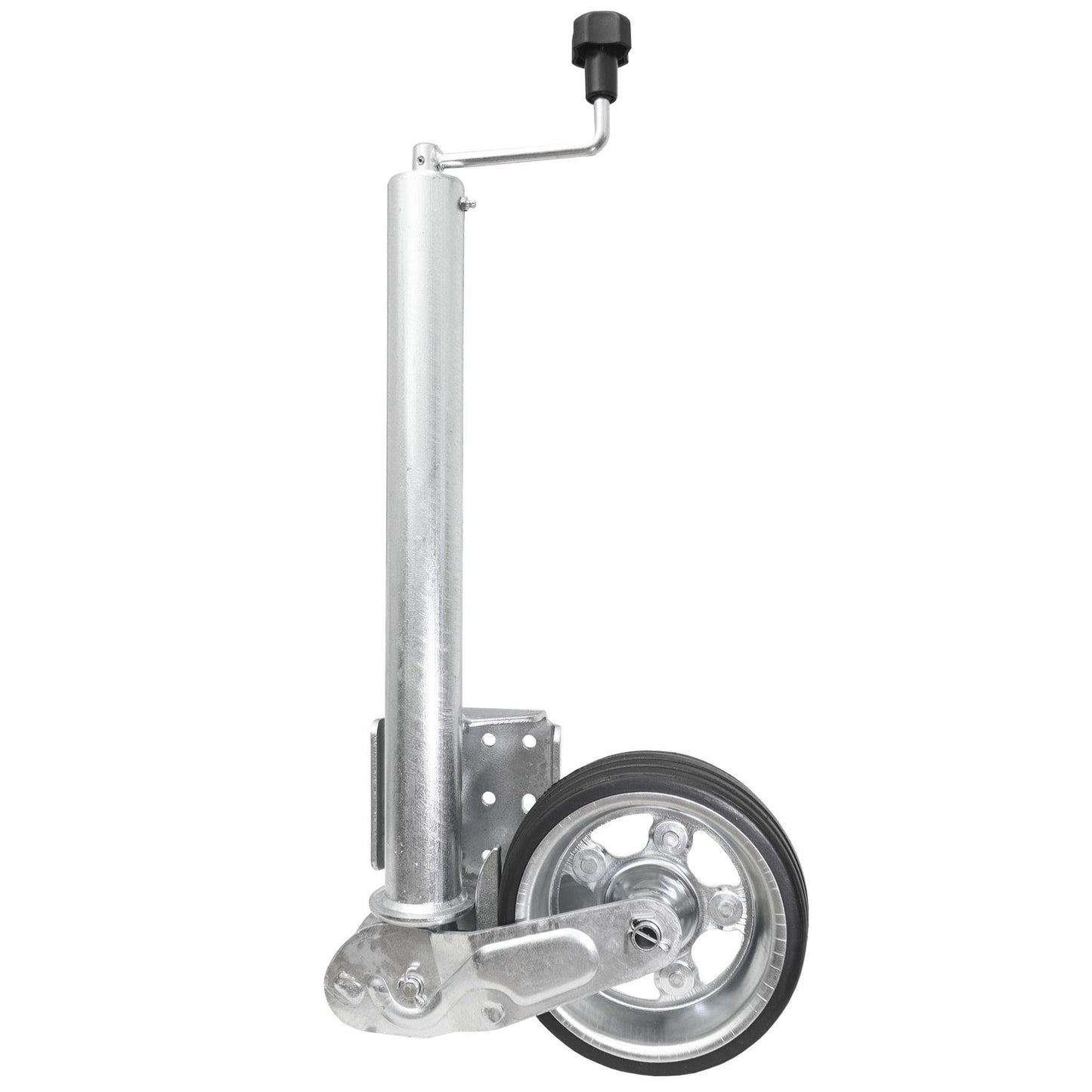

Jockey wheel 500KG TD60V-XL 230x80 extra long
Jockey wheel 500KG TD60V-XL 230x80 extra long
In stock
automatic trailer heavy-duty support wheel
Support load: 500 kg with 230x80mm rim
extended stroke!
for heavy trailers, caravans, car transporters, etc.
Description :
Support wheels are part of the support devices on central axle trailers, which are prescribed by the STVZO if the support load is more than 50 kg. They must be height-adjustable and attached in a captive manner.

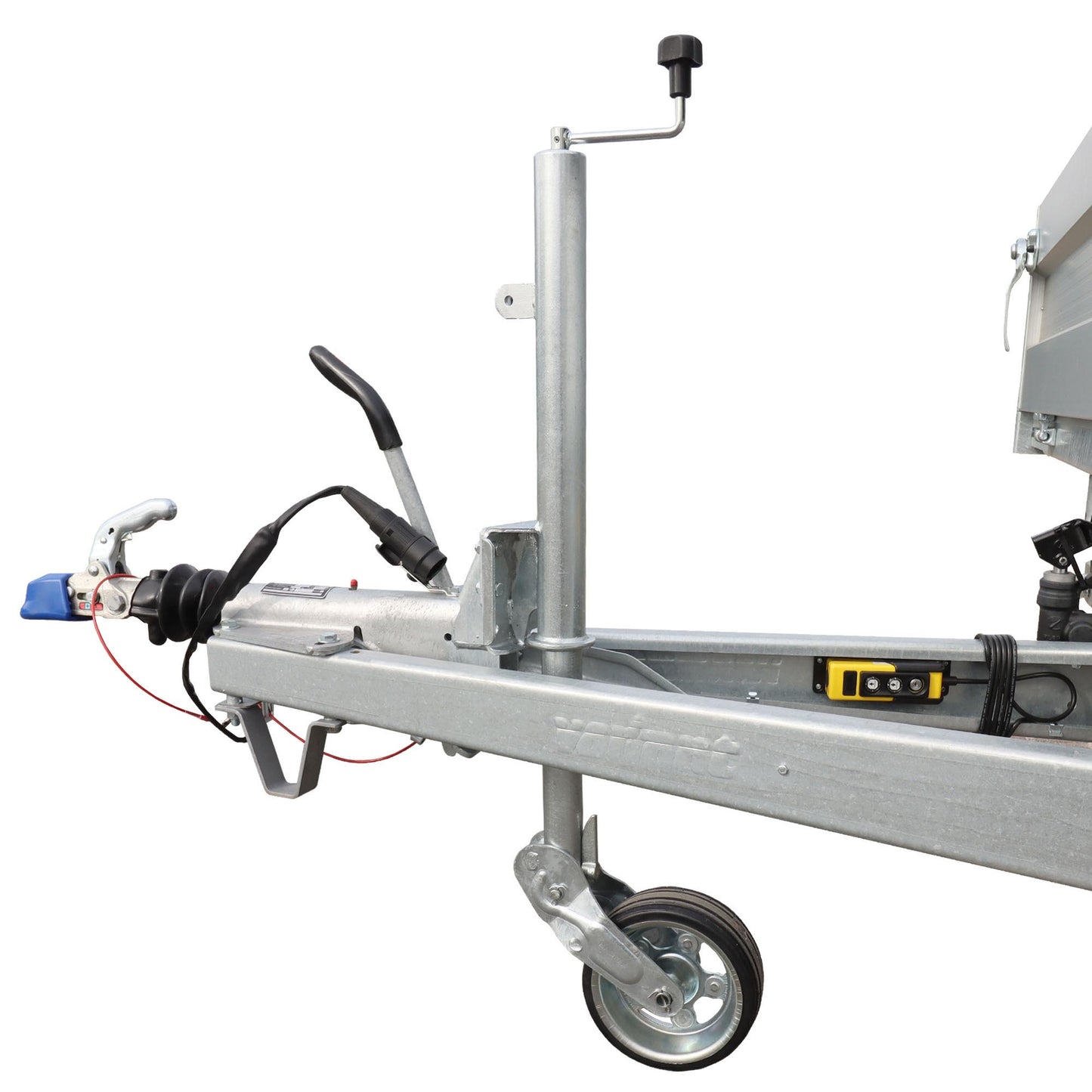

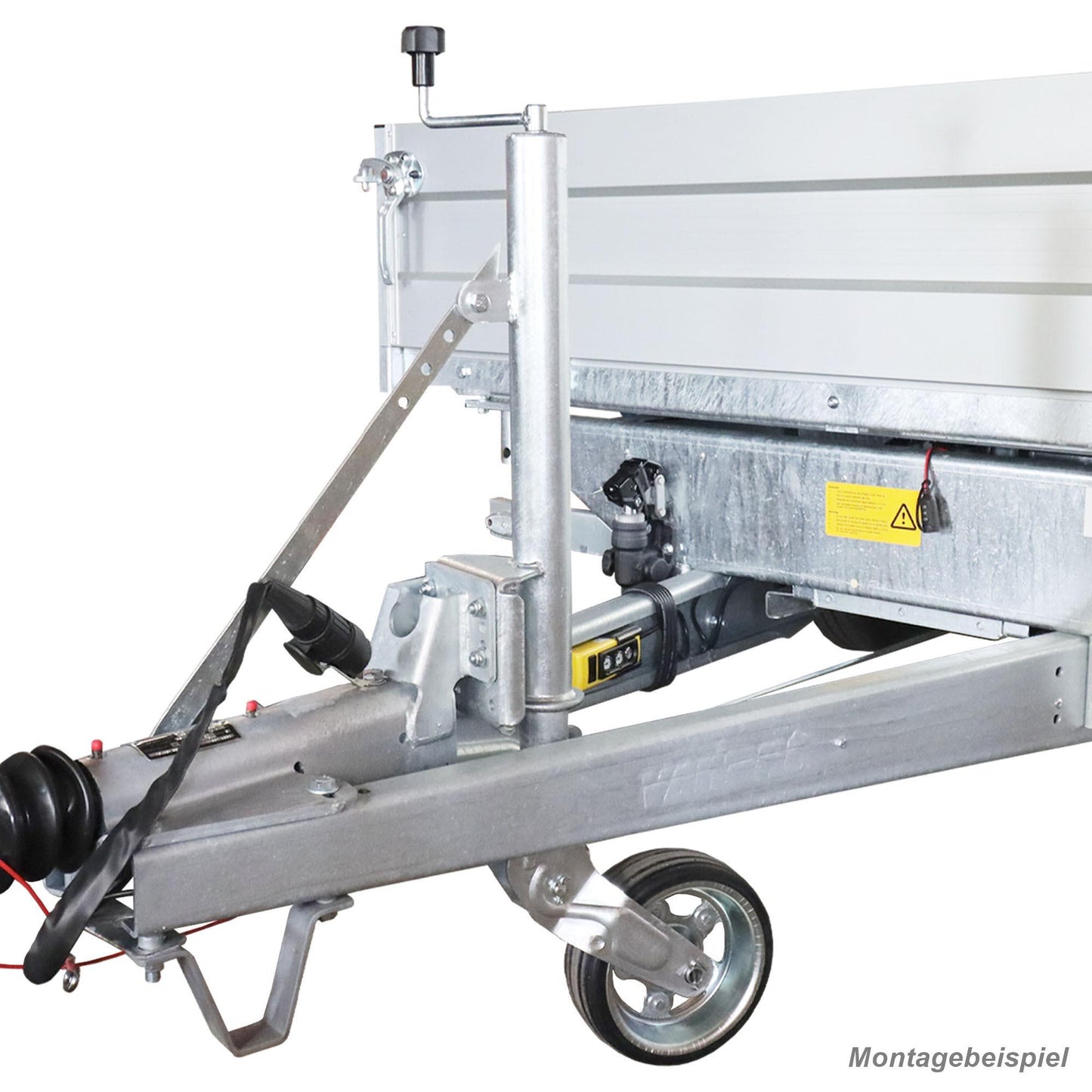

They are equipped with wheels for maneuvering or parking the trailer. They are mounted directly or with various brackets on the drawbar.
Details:
- Built-in thrust bearing under the crank
- Pipe diameter: 60 mm

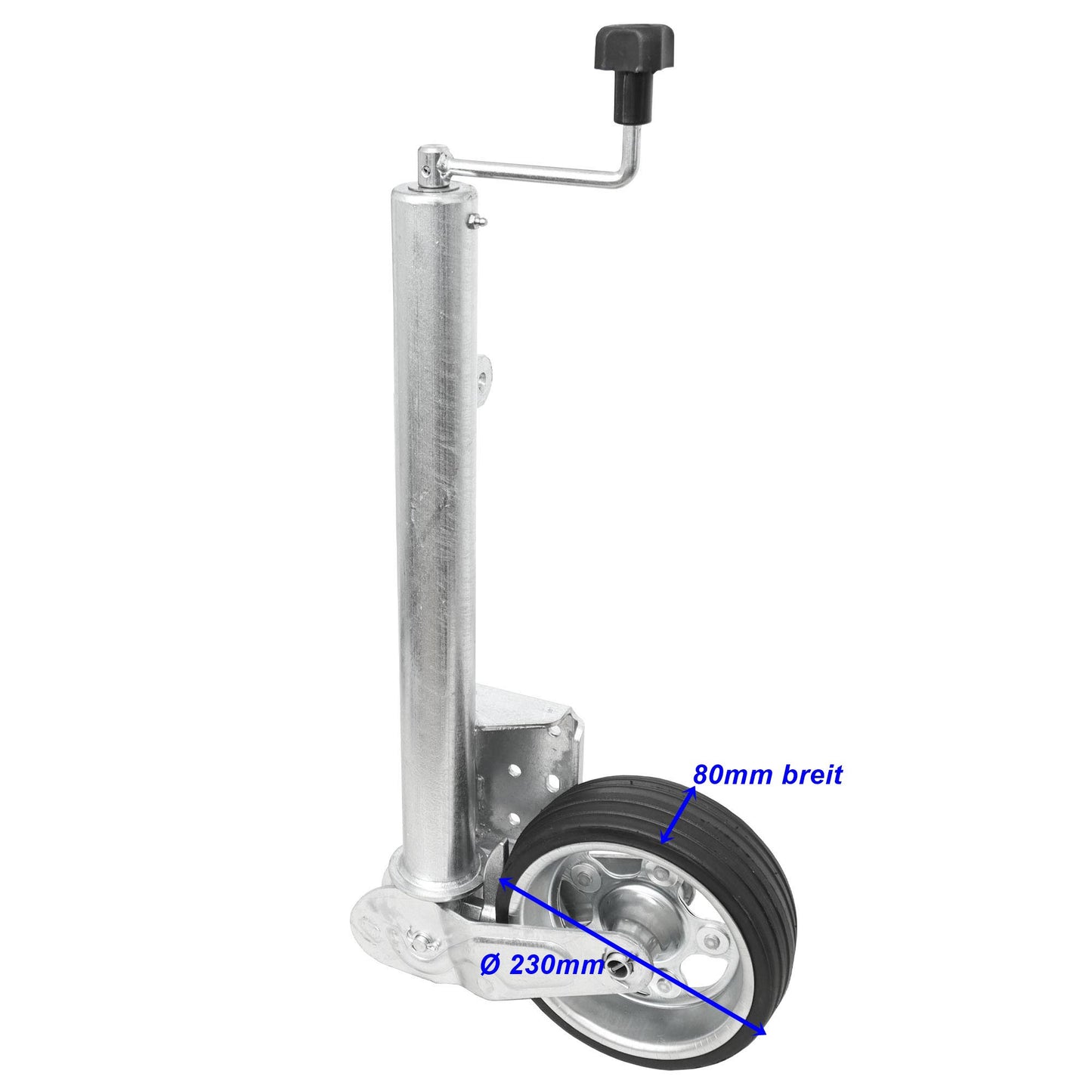

- solid rubber wheel with steel rim Ø230 x 80 mm
- Welded universal flange for attachment to drawbar or overrun device
- Static load capacity: 500kg
- hot-dip galvanized
- swiveling
- easy operation of the crank
- reinforced console
- with grease nipple
- Weight: approx. 11.7kg

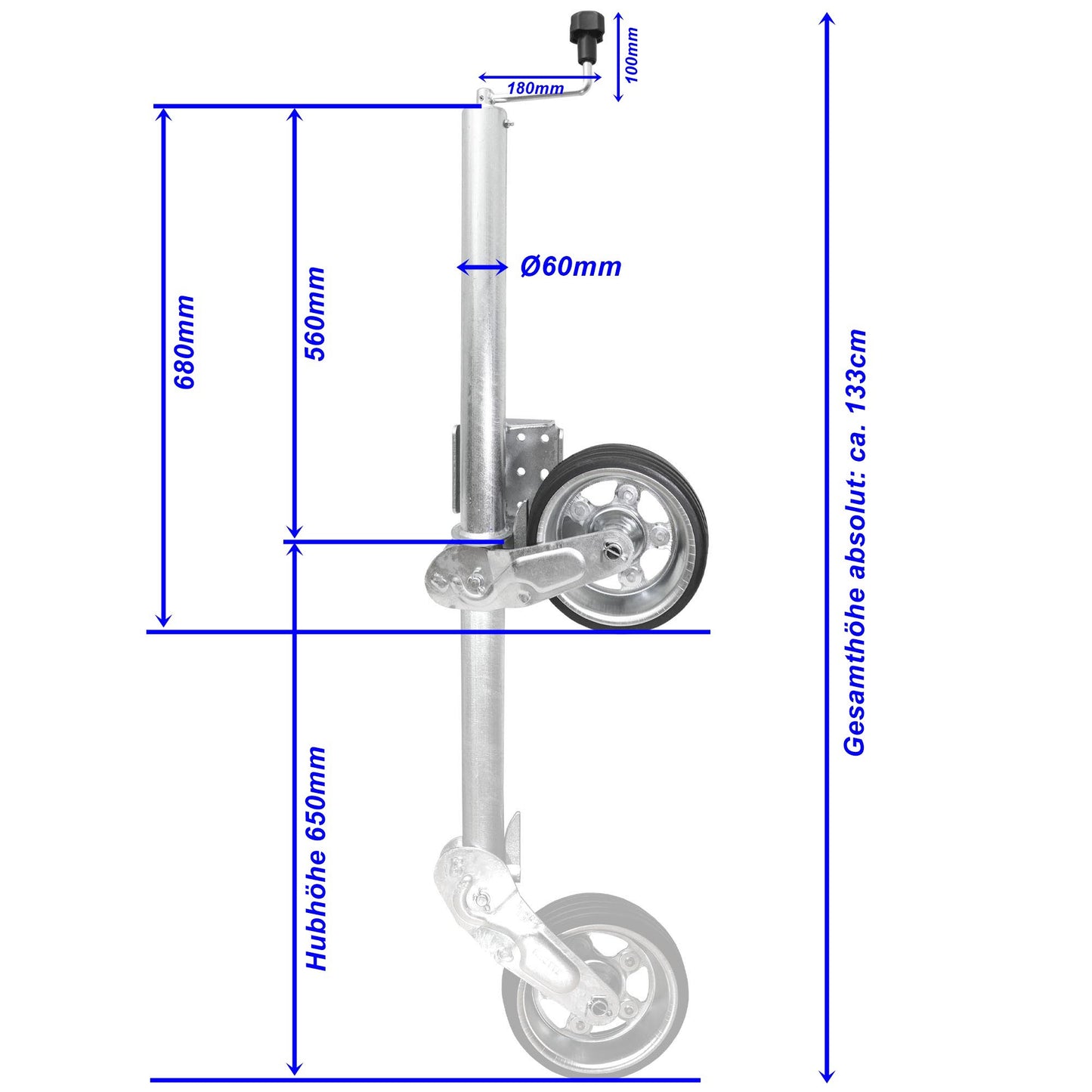

- Dimensions: see product images
-
