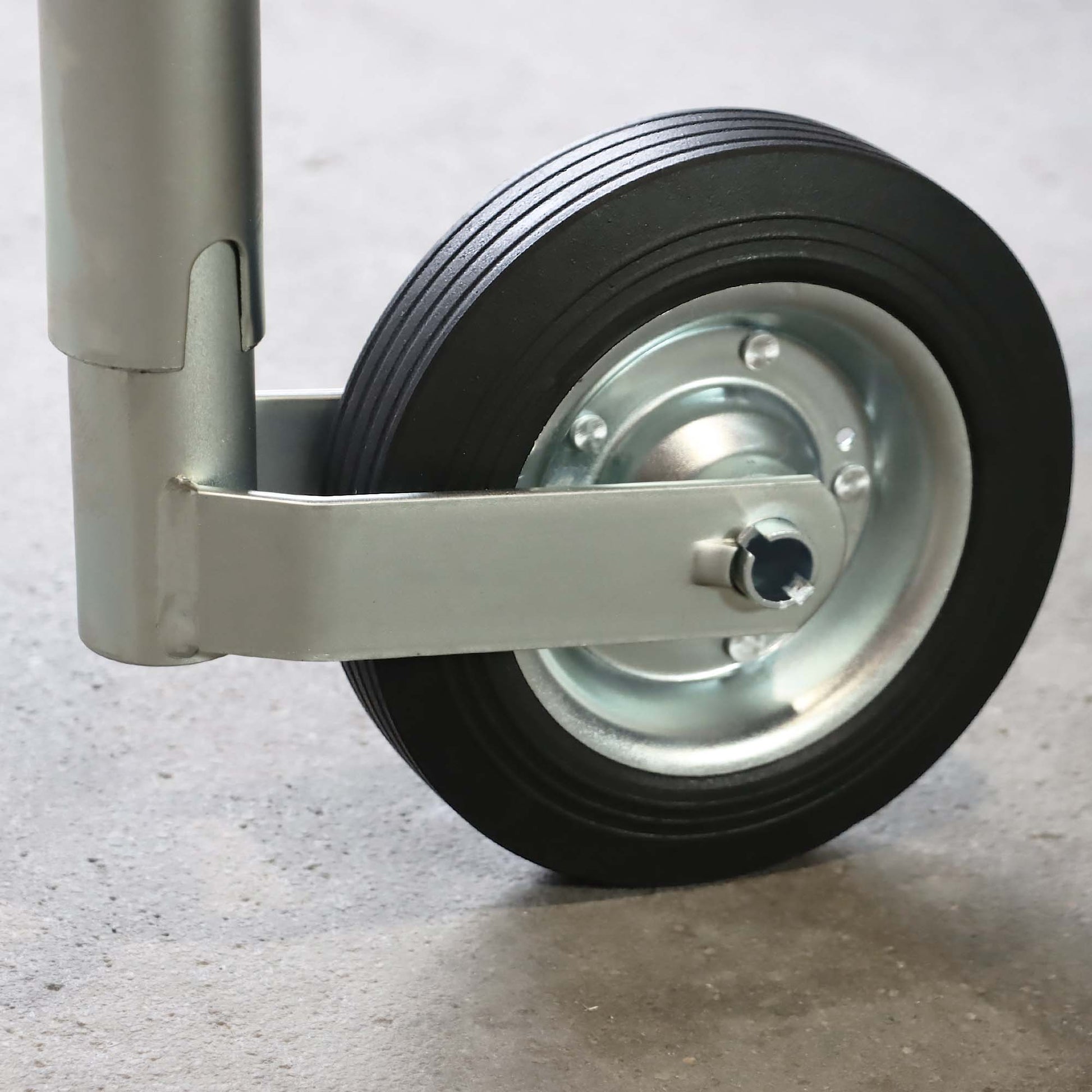

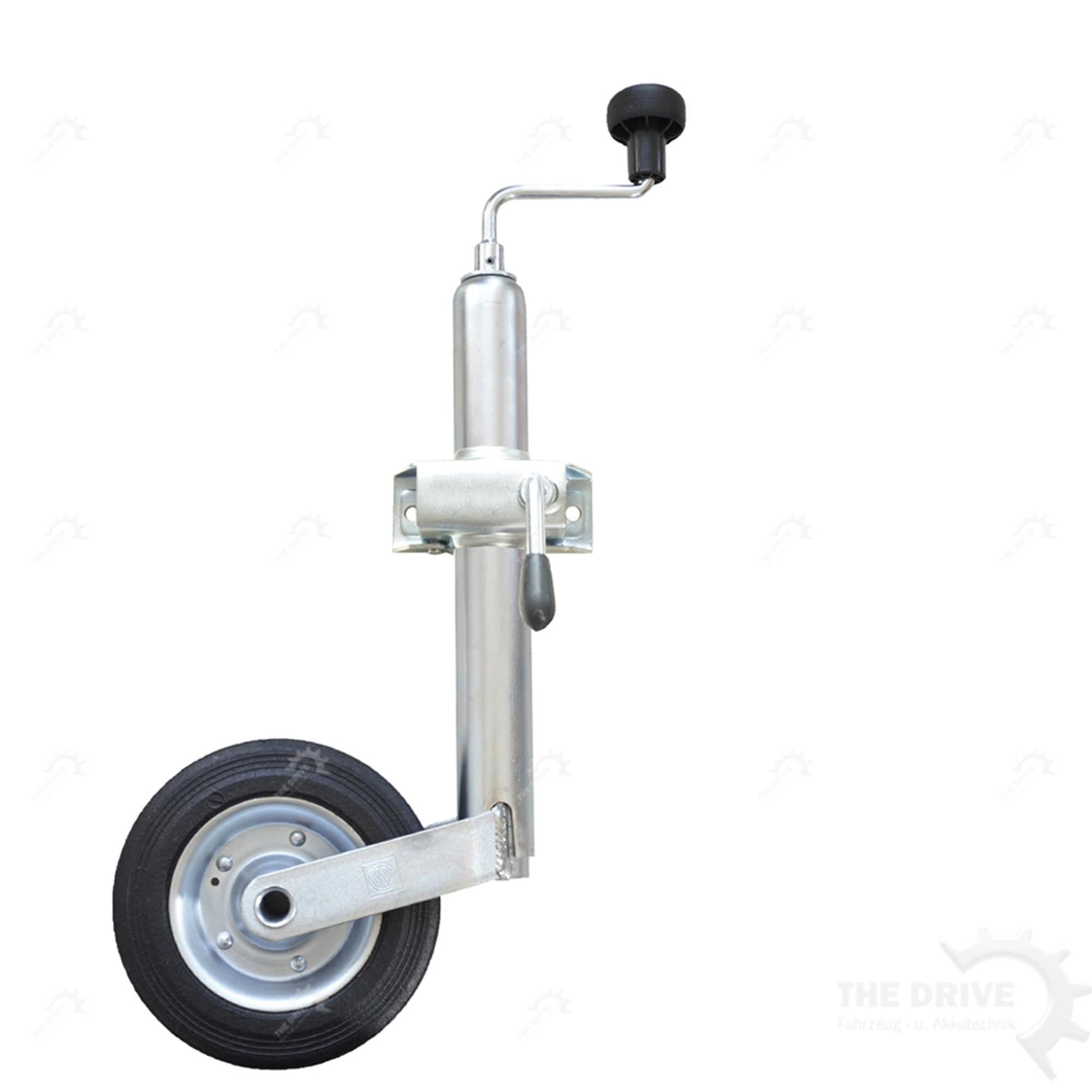

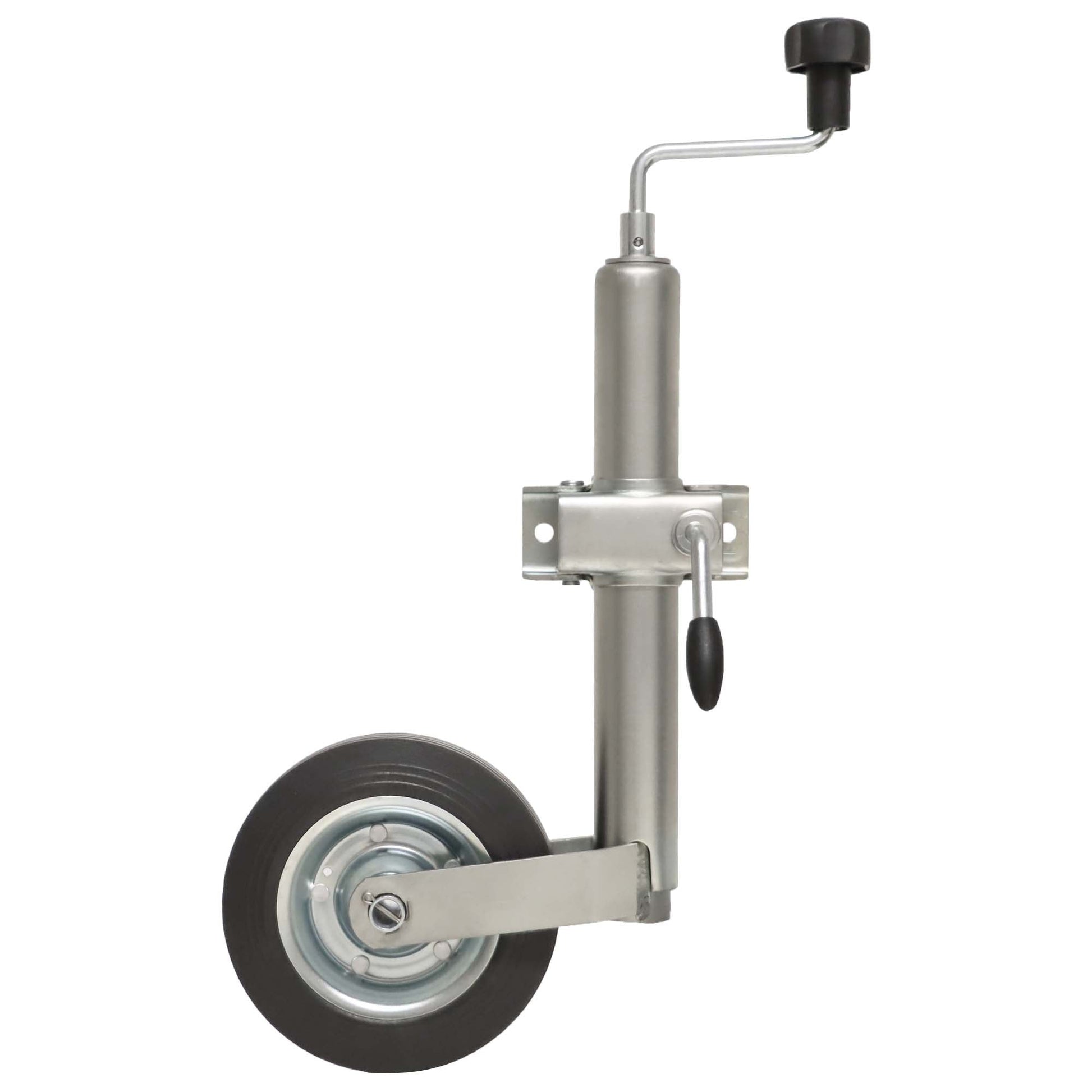

TMN jockey wheel with steel rim, solid rubber tire with clamp holder

TMN trailer support wheel with clamp holder

max. support load: 150kg

with solid rubber tires on steel rims

version with thrust bearing

Description :

This set contains high quality accessories for your trailer that you need,
if you simply want to increase your personal safety when loading and unloading your trailer,
or you want to repair your trailer.

Contents:

• 1 x TMN support wheel 150 kg with steel rim
• 1 x clamp holder for support wheel Ø 48mm

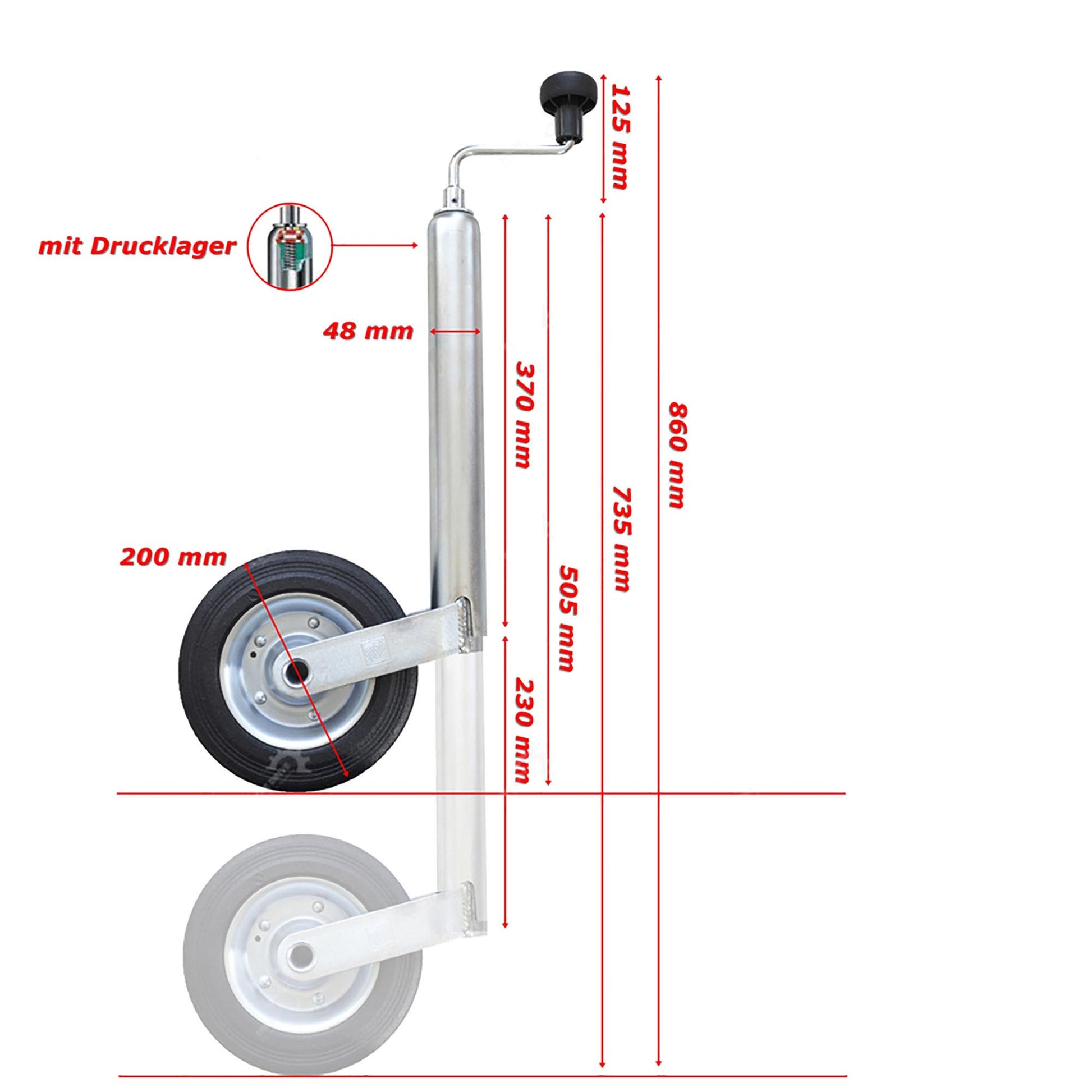

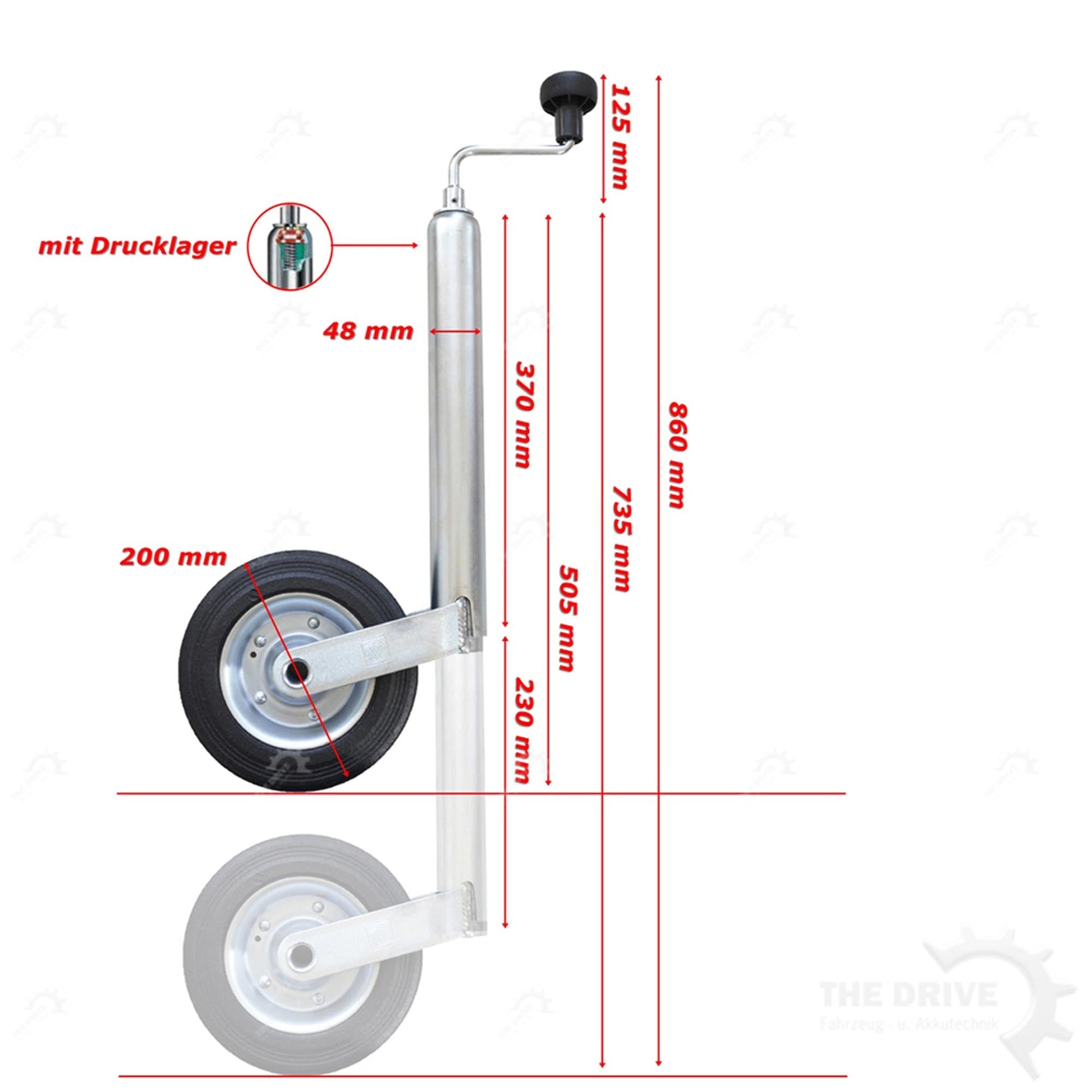

Details about the support wheel:

Support wheels are part of the support devices on central axle trailers, which the STVZO prescribes,
if the support load is more than 50 kg. They must be height-adjustable and captive.
They are equipped with wheels for maneuvering or parking the trailer.

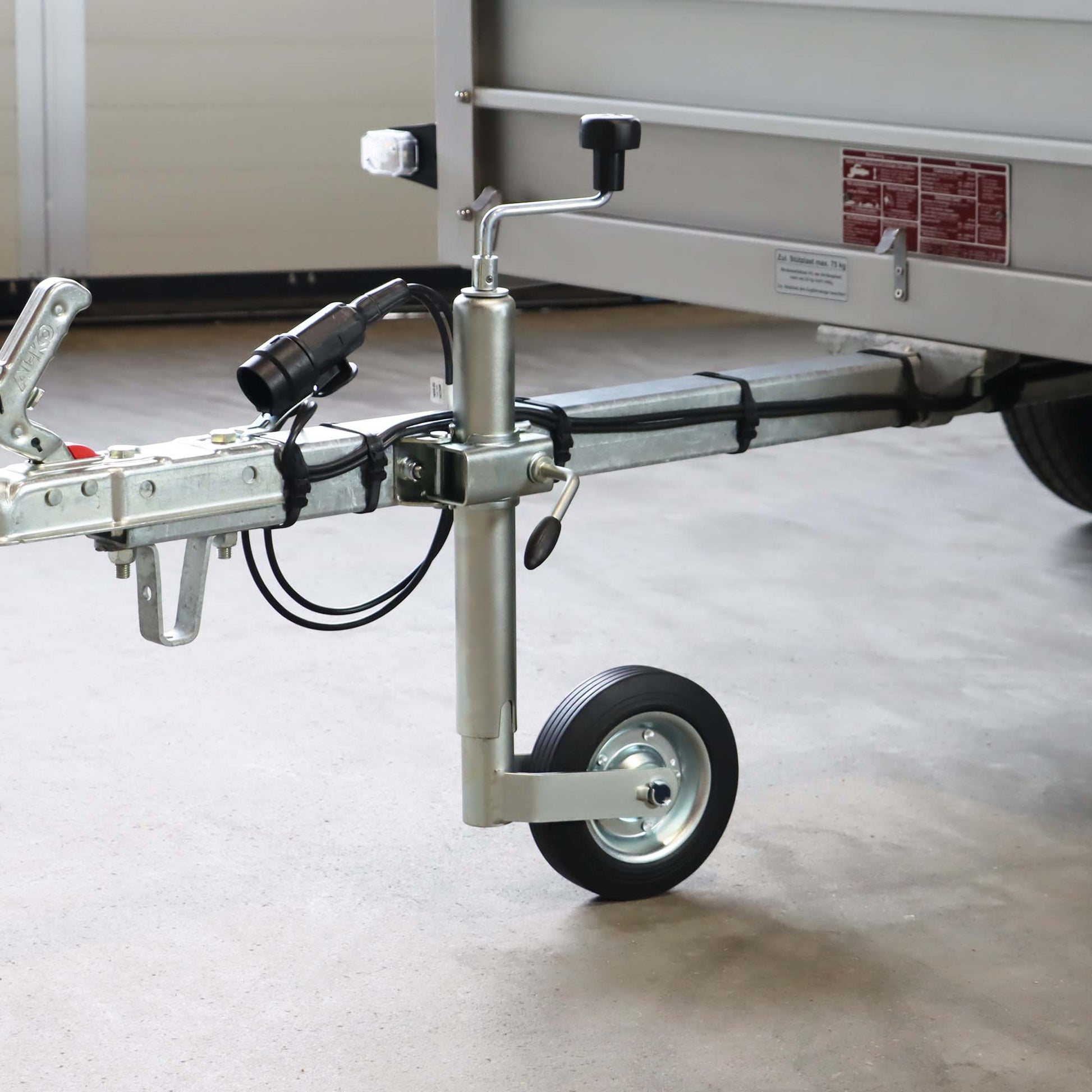

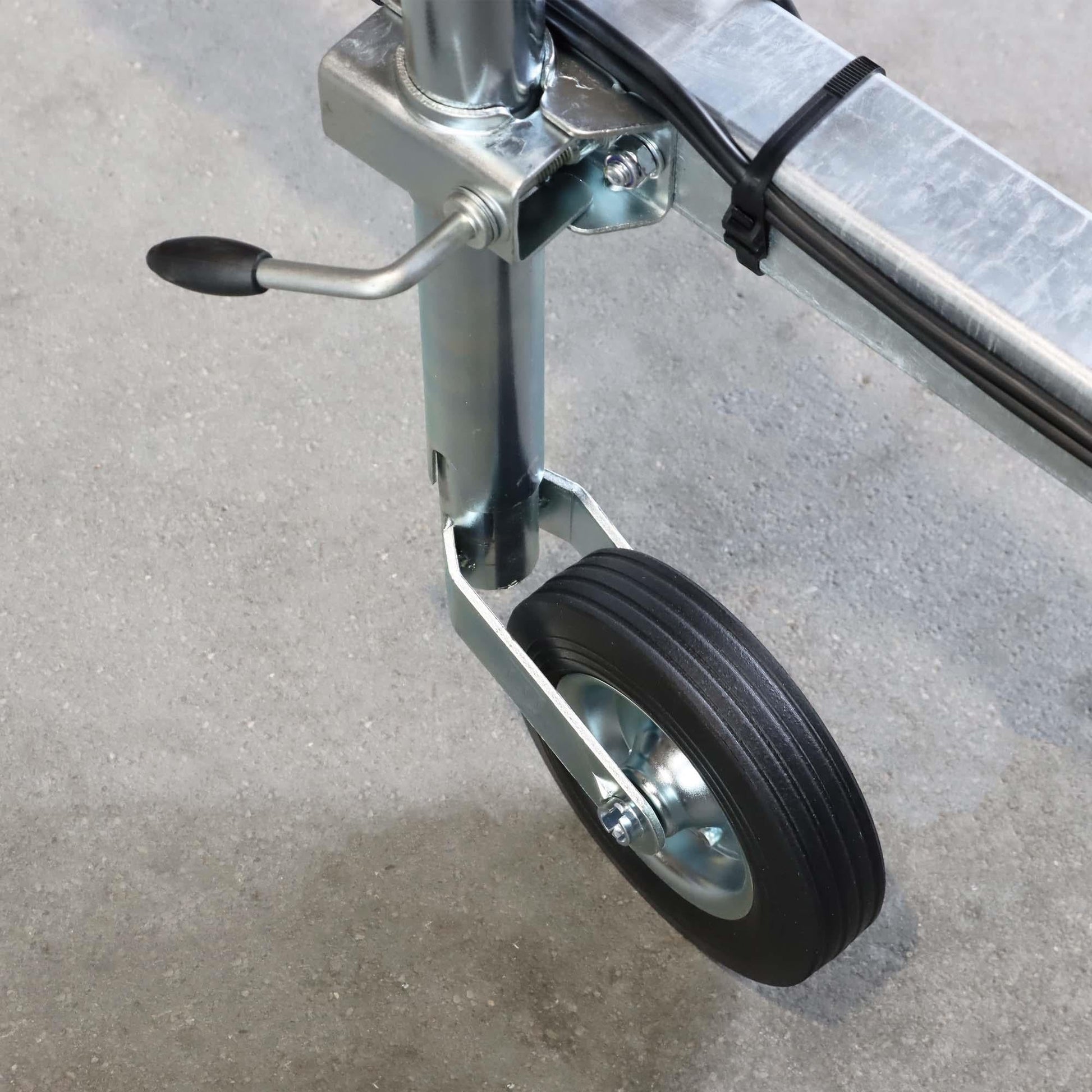

The mounting is done directly or with various brackets on the drawbar.

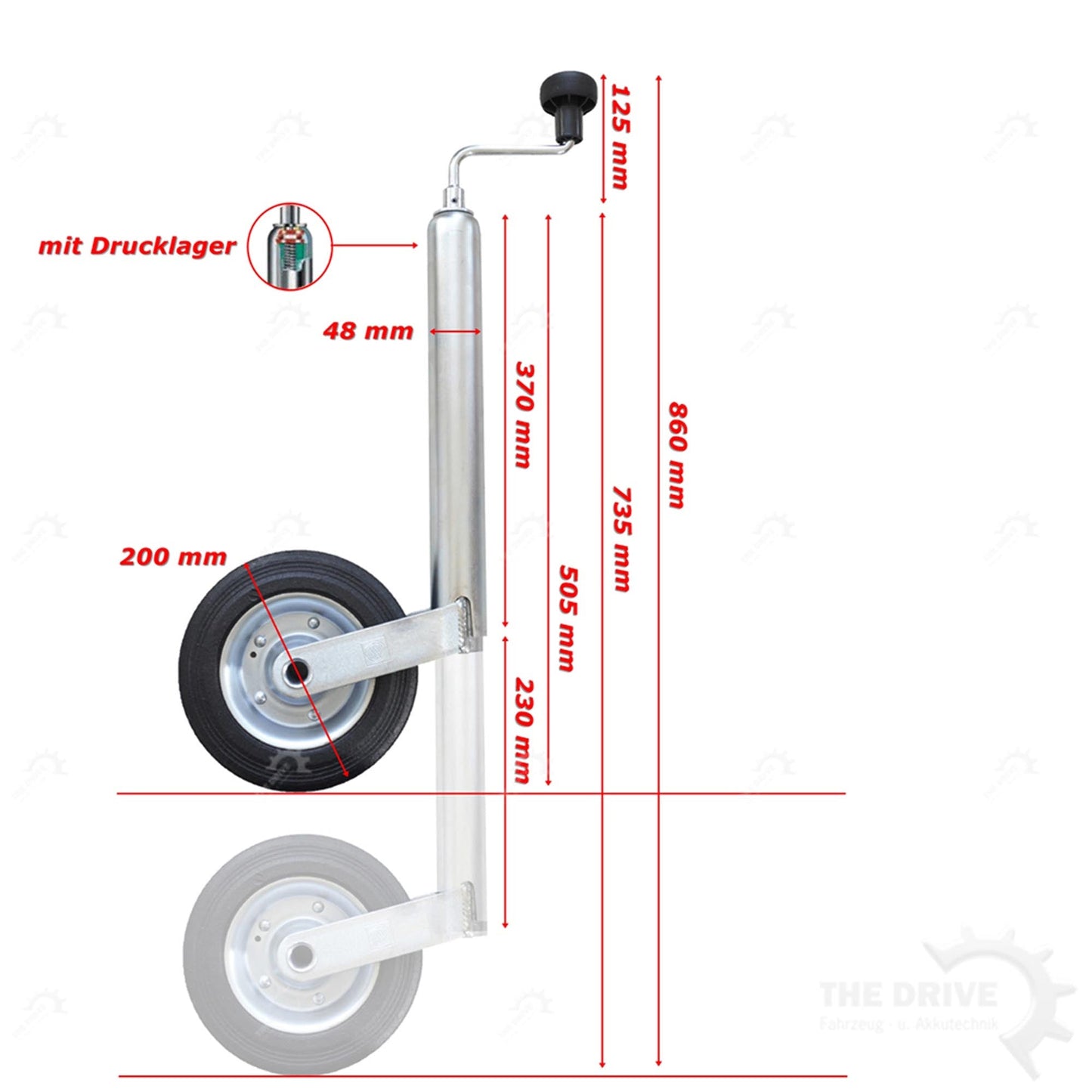

• Material: Steel
• Pipe diameter: 48 mm
• galvanized
• with thrust bearing
• Static load capacity: 150kg
• lifting height: 230mm
• Height: 505mm
• Rim: Steel
• Wheel: 200 x 50 mm solid rubber
• Wheel bearing: plain bearing

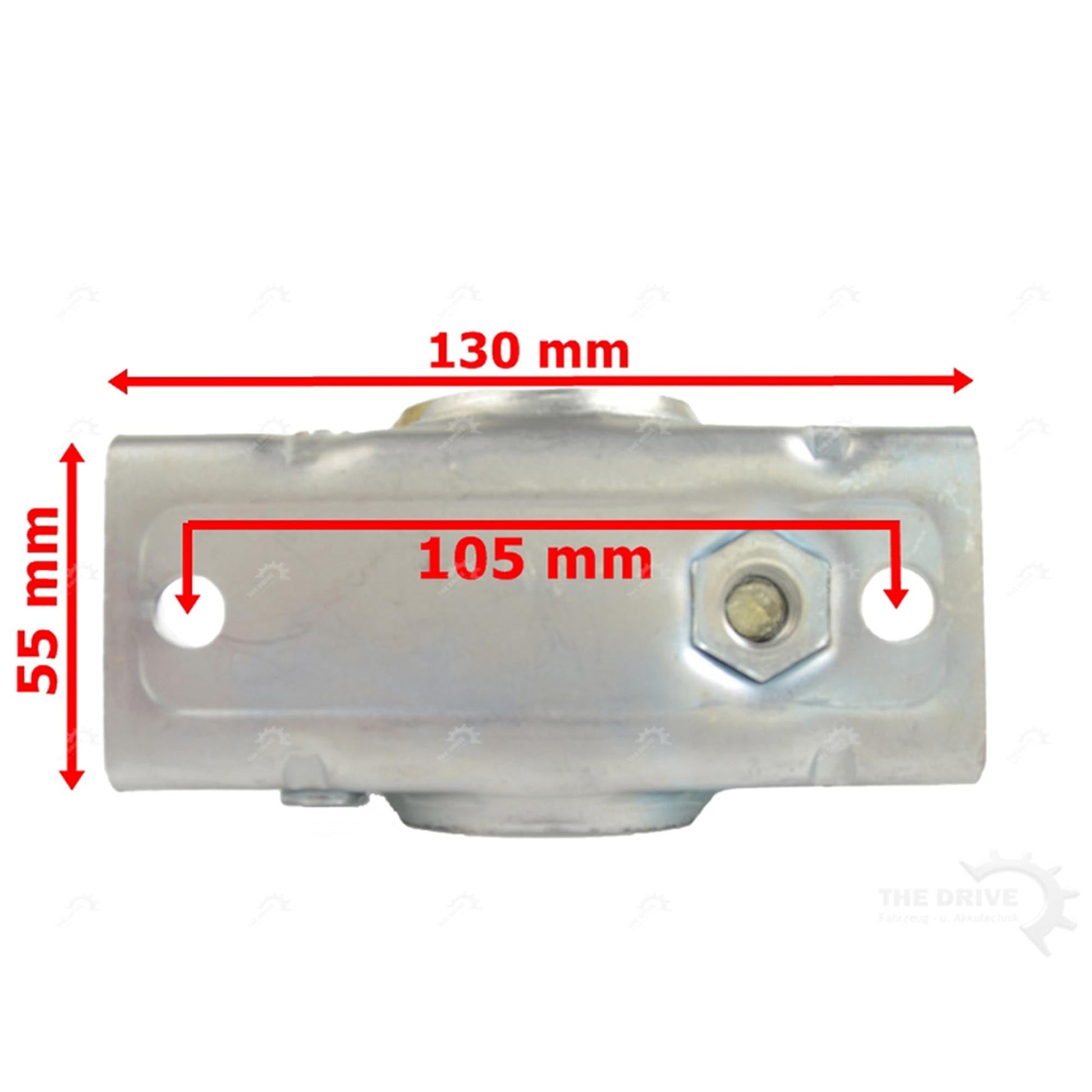

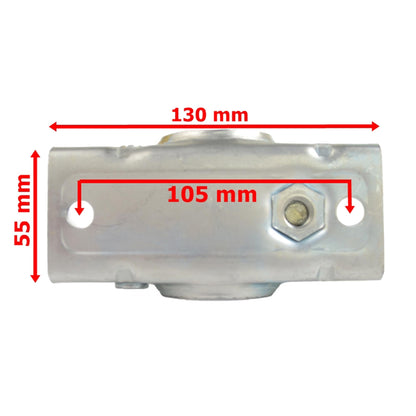

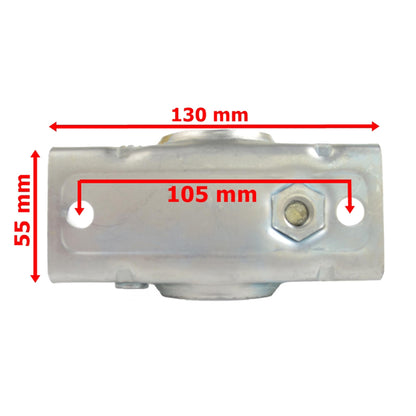

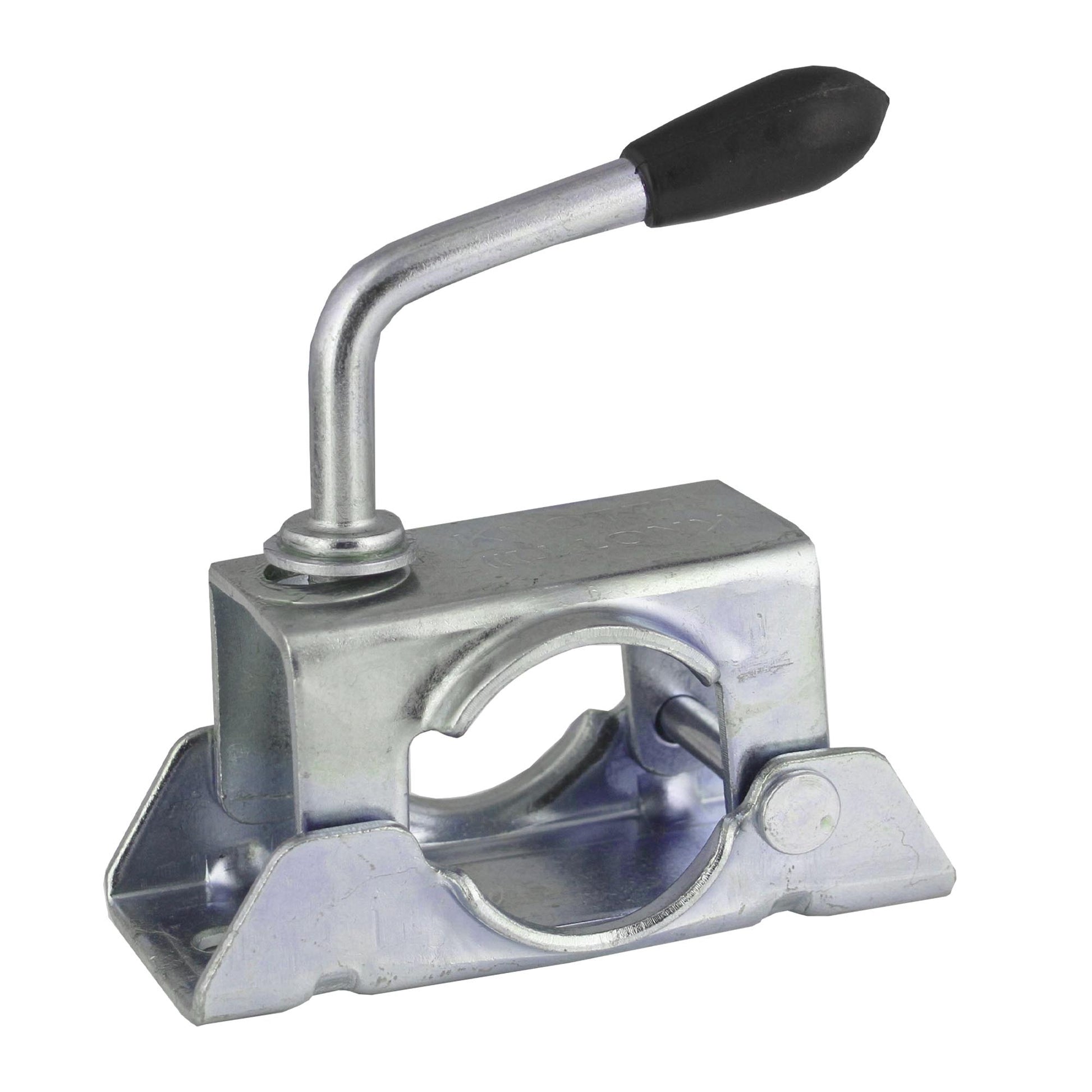

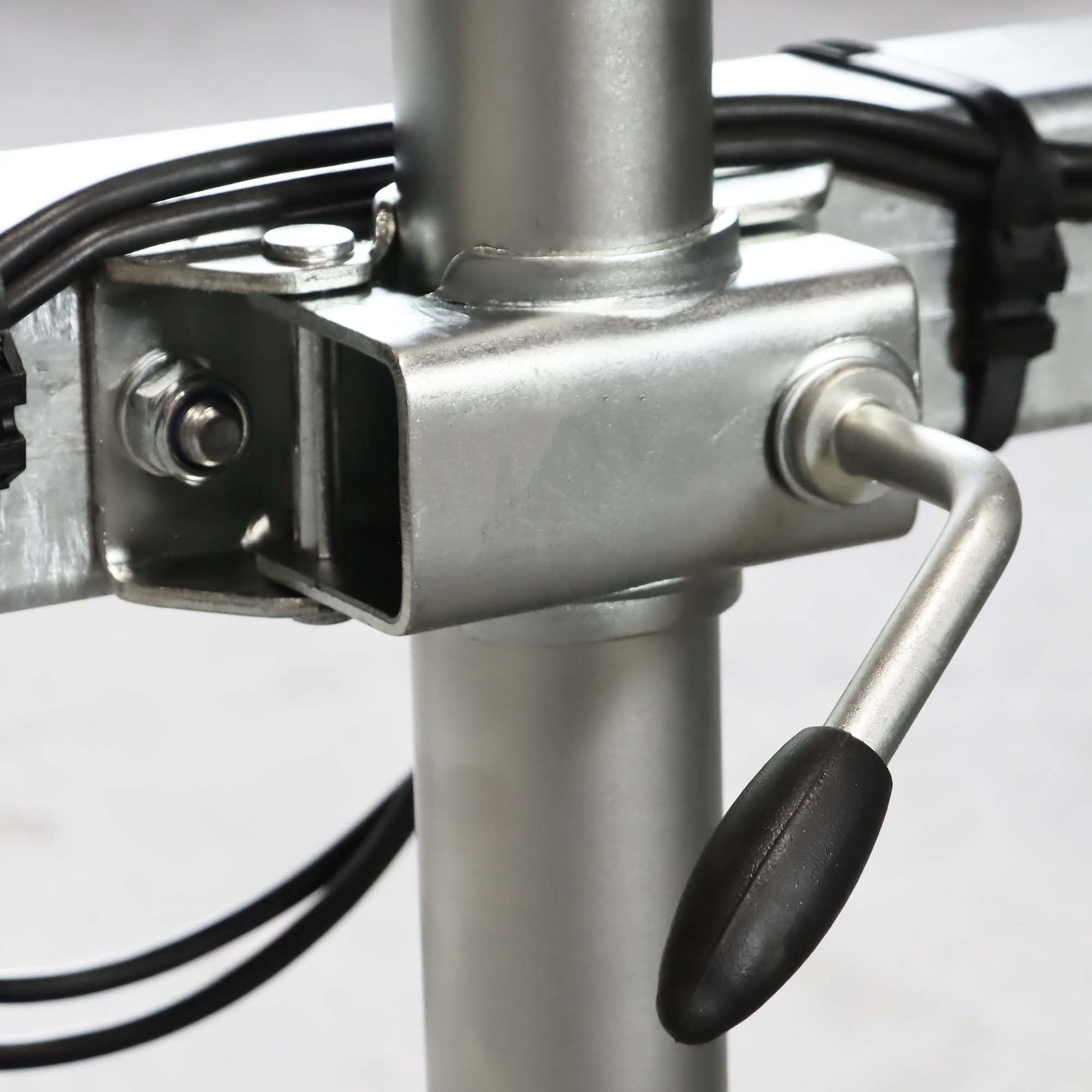

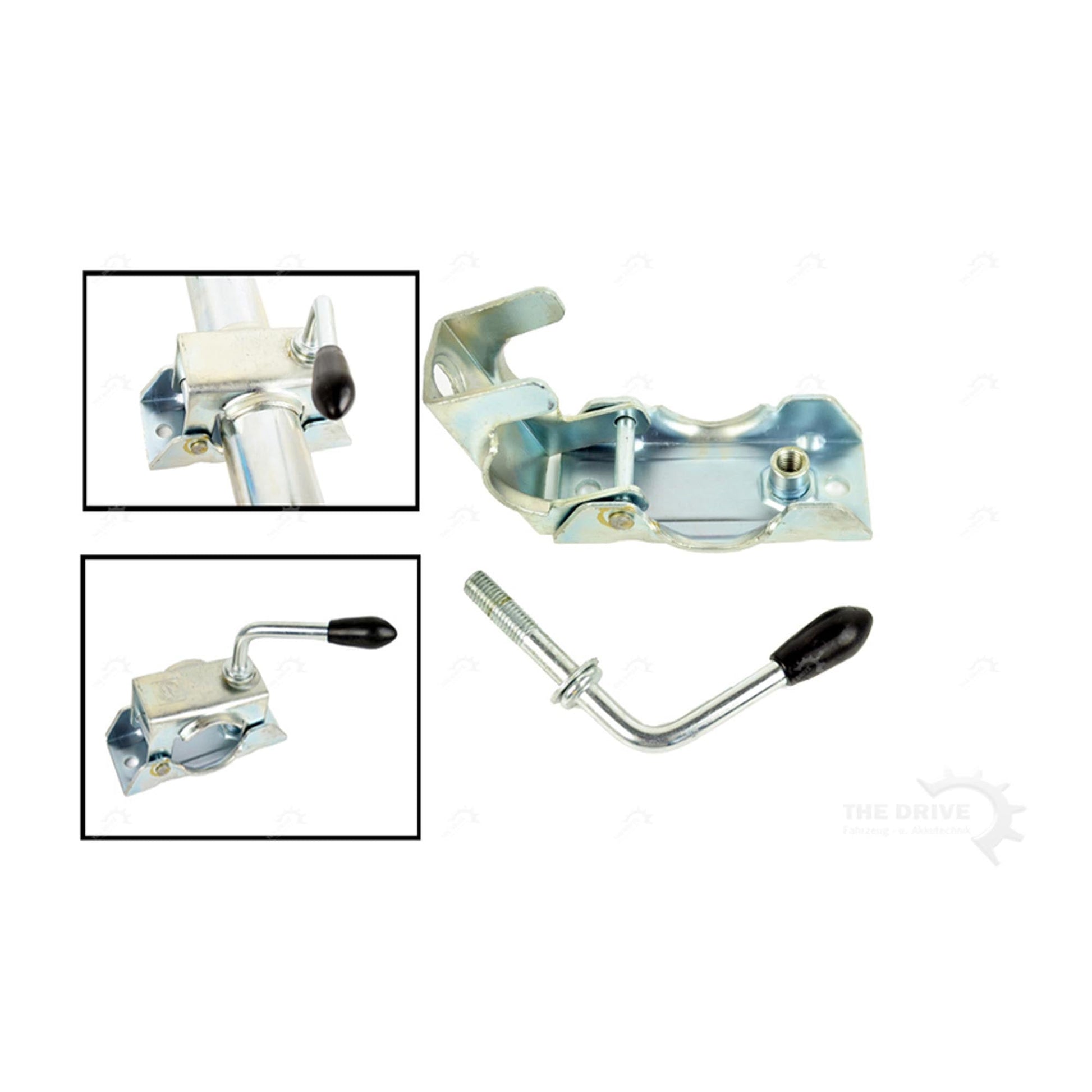

Details of the clamp holders for support wheels / pipe supports:

• For pipe diameter: Ø 48mm

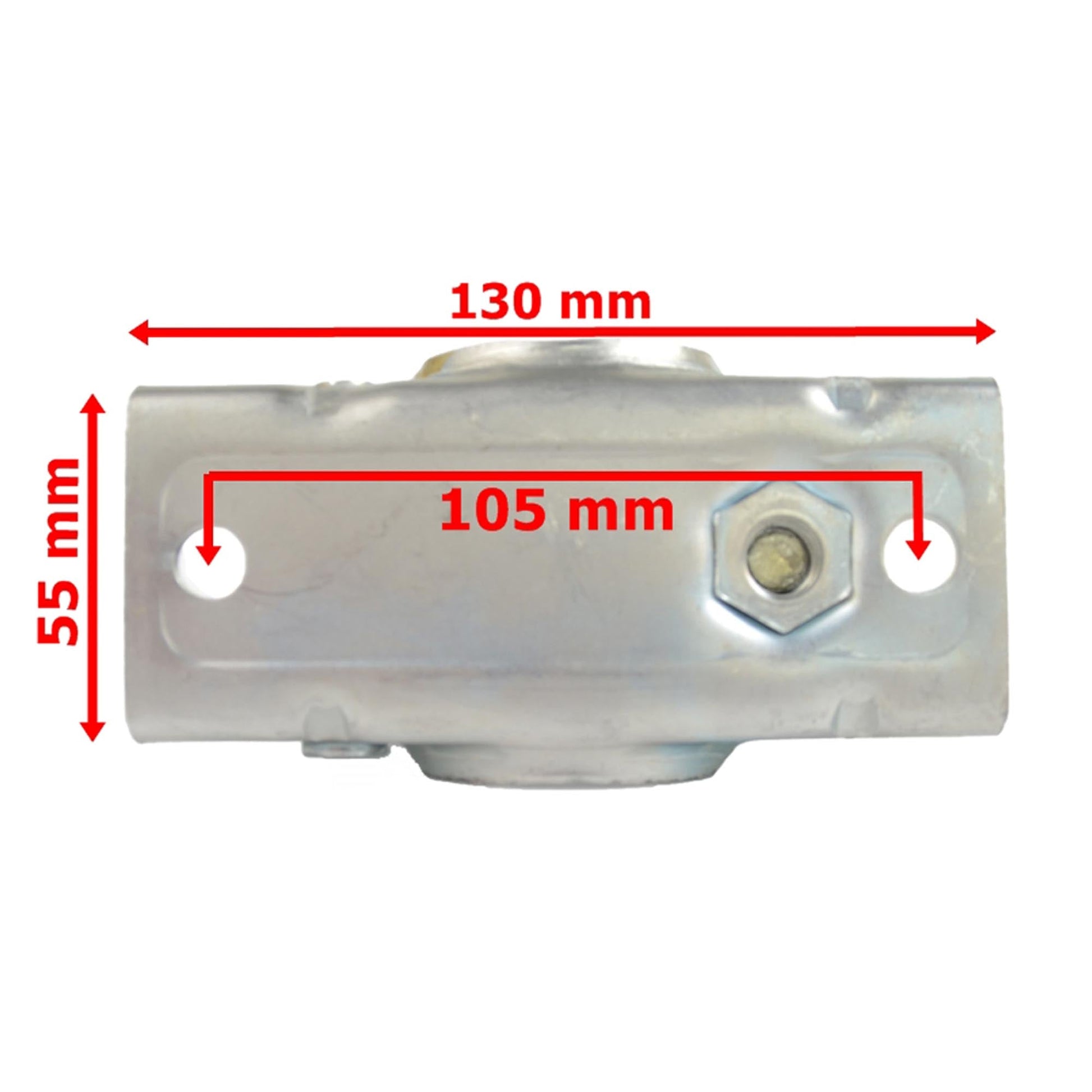

• Distance between mounting holes: 105 mm
• Material: Steel
• Surface: galvanized
